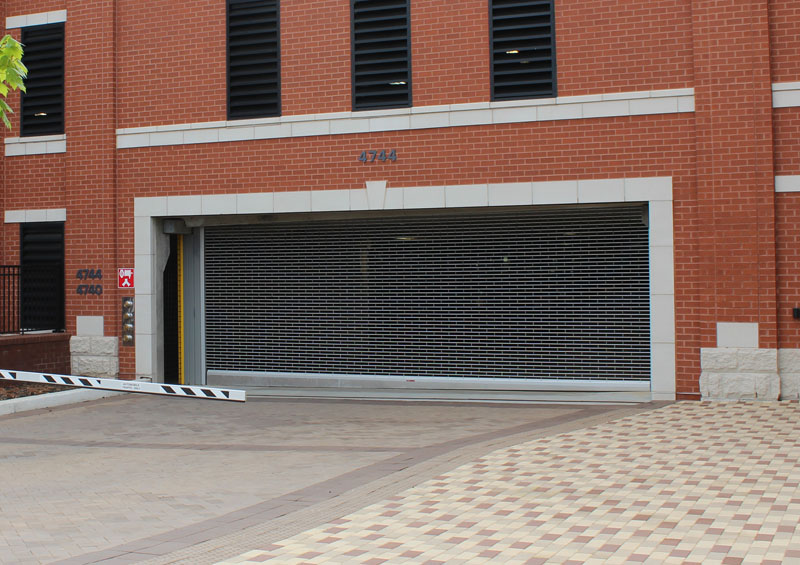

Our Extreme 324 High Performance Grille:

• Opens 3 times faster than a standard rolling grille
• Has a sustainable and durable design rated for continuous duty
• Features a 5 year warranty on the operator and a 2 year/300K cycle warranty on the additional components
• Complies to the UL 325 standards for occupant safety
• Accepts virtually all activation systems

Sizes

Our 324 High Performance Grilles come in the following standard height and width parameters:

For openings that fall outside of the standard construction, please contact us.

Standard Materials and Finishes

The 324 Performance Grille’s open air design provides increased visibility and ventilation. Curtains are assembled with heavy duty 5/16” diameter aluminum alloy rods spaced at 2” on the center with aluminum tube spacers specifically placed to create two pattern options:

• Brick Pattern

• Straight Pattern


Curtains can come in the following finishes:

Mill
Clear anodized
Medium bronze anodized
Dark bronze anodized
Black duranodic

Drive and Control System

Motor: Our 324 Performance Grille is powered by a UL listed, SEW Eurodrive TEFC NEMA4 variable speed motor with sprocket and chain drive horizontally mounted directly to the unitized structure. This operator also features a patent-pending high performance brake, which prevents the curtain from free-falling in the unlikely event of operator component failure.

Control Panel: The 324 Performance Grille is controlled with a wall-mounted starter. This PLC controller features a variable frequency drive with a soft-start and soft-stop at both ends of limit travel. For harsh weather environments, the controller is NEMA 4 rated. Dimensions of the control panel are 20” x 24” x 8.”
