VertiStack™ Clear Door

Full-View Stacking Door

Full-View Stacking Door

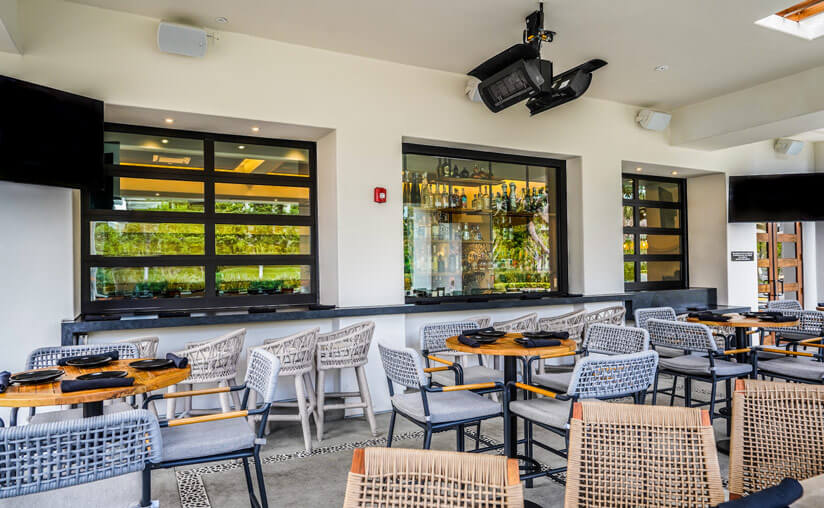

The VertiStack Clear door features a unique construction with sections that stack above the opening, eliminating the need for overhead tracks. This allows for a clear ceiling and won't conflict with mechanical, electrical or plumbing fixtures located in the ceiling. Designed with a clean, modern aesthetic, there are no hinges or exposed tracks or cables, and it is available with a variety of aluminum finishes and window materials.

Download Product Brochure

Models
Options
Construction
Specs/Drawings
Brochure
Springs & Hardware

Models

MODEL VS904 STANDARD SPECIFICATIONS

Min Opening Width	4'6"
Max Opening Width	14'0"
Min Opening Height	4'0"
Max Opening Height	14'0"
Thickness	2 1/8"
R-Value	N/A

The door will always be 6” wider than the opening width, so door width range is 5’0 to 14’6”.

CALCULATE NUMBER OF PANELS AND SECTIONS

Options

FULL-VIEW DOOR

GLASS/PANEL OPTIONS:

FULL-VIEW (VS904)

GLAZING MATERIAL OPTIONS:

CLEAR GLASS

GRAY TINTED GLASS

BRONZE TINTED GLASS

MIRRORED GLASS*

OBSCURE GLASS

WHITE LAMINATE GLASS*

BLACK LAMINATE GLASS*

FROSTED GLASS OR ACRYLIC

CLEAR ACRYLIC

GRAY ACRYLIC

WHITE ACRYLIC

CLEAR POLYCARBONATE

BRONZE POLYCARBONATE

ALUMINUM PANEL COLOR MATCH

*Mirrored and laminate not available in 1/2"

Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.

COLOR OPTIONS:

CLEAR ALUMINUM (ANODIZED)

STANDARD WHITE

BRONZE (PAINTED)

CHOCOLATE (PAINTED)

BRONZE ANODIZED*

BLACK (ANODIZED)*

DARK BRONZE ANODIZED*

REQUEST COLOR SAMPLES

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.

Construction

FULL-VIEW DOOR

MODEL VS904
Stiles:	Double end stiles standard
Glazing Available:	Variety of glass and acrylic panels are available including tempered, insulated, frosted and low-E options
Glass/Acrylic Thickness:	⅛”, ¼”, ½” & ⅝”
Springs:	25,000 standard cycle
Track Size:	2" track standard
