Alumatec Coiling Grilles

Contact us about this product
Email Print Brochure

view more information

Download Product Brochure Visit Supplier Site
Design Applications

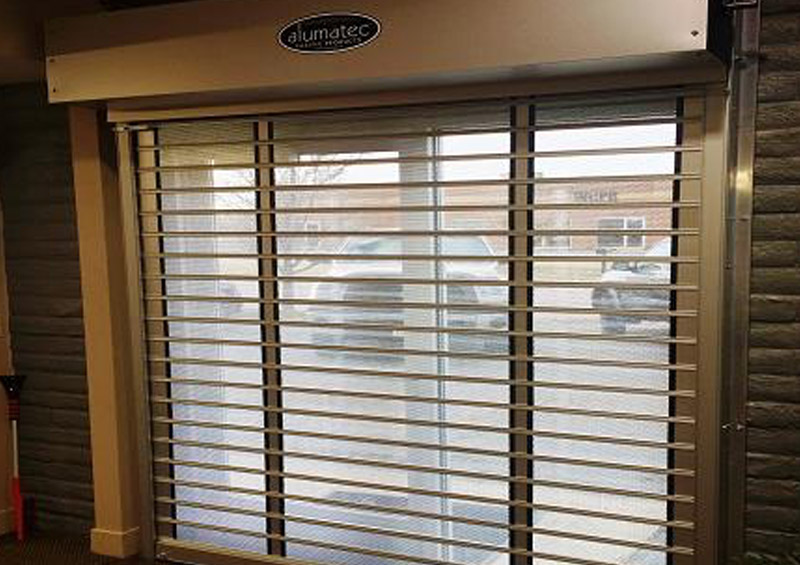

Alumatec’s most popular form of security closure is manufactured with tempered solid aluminum rods. Used in shopping malls, drug and convenience stores, schools, airports, hotels, parking garages and any other location where there is a “store within a store”. Each grill is custom made to your exact size and spec. Standard link spacing is 9” and rod spacing is 2”.

Options

PERFORATED SHUTTER (PFR)

  • 093" aluminum sheeting with slotted BB holes at 1/4" round, spaced to allow 53% open/transparency and airflow pattern.
  • Satin Commercial Clear anodized shutter
  • Painting Options: 188 Color choices from Tiger Drylac Powder Coatings.
  • Choice of operation with Reduced drive chain hoist, hand crank, or motor operation.
  • High security with stunning, elegant look!
  • Ideal for retail store-front applications

POLYCARBONATE (LXR)

Alumatec’s polycarbonate grille is the best in the industry. Manufactured using 3/32” poly to provide years of security and visibility to your products. Glazed grilles allow for maximum storefront merchandising.

  • 100 percent closed curtain
  • Each window is framed to prevent abrasions on the glass, thus
  • Maintains clear visibility of the merchandise even after years of use.
  • Accommodates openings up to 28’ wide and 20’ high.
  • Motors are recommended 100% Closed Curtain over 135 square feet.

SOLID SHUTTER (S-2)

When security is a must, Alumatec’s aluminum rolling shutter is the answer. Manufactured using aluminum slats, these shutters can be utilized for interior or exterior applications.

  • Applicable for counter-top applications.
  • Solid aluminum shutter with interlocking slats.
  • Accommodates openings up to 30’ wide and 20’ high.
  • Motors are Recommended on curtains over 150 square feet.

FENESTRATED SHUTTER (FSR)

When maximum security and airflow are a must, Alumatec’s fenestrated shutter cannot be beat.

  • Satin Commercial Clear anodized aluminum shutter.
  • .050 gauge slat thickness for maximumsecurity and longevity.
  • Ideal for parking structures, container docks or any application where security and airflow needed.
  • Choice of operation with Reduced drive chain hoist, hand crank, or motor operation.
  • Standard head room needed is 14 inches (coils into 14 inch box)
  • Painting options: 188 color choices from Tiger Drylac Powder Coatings.
